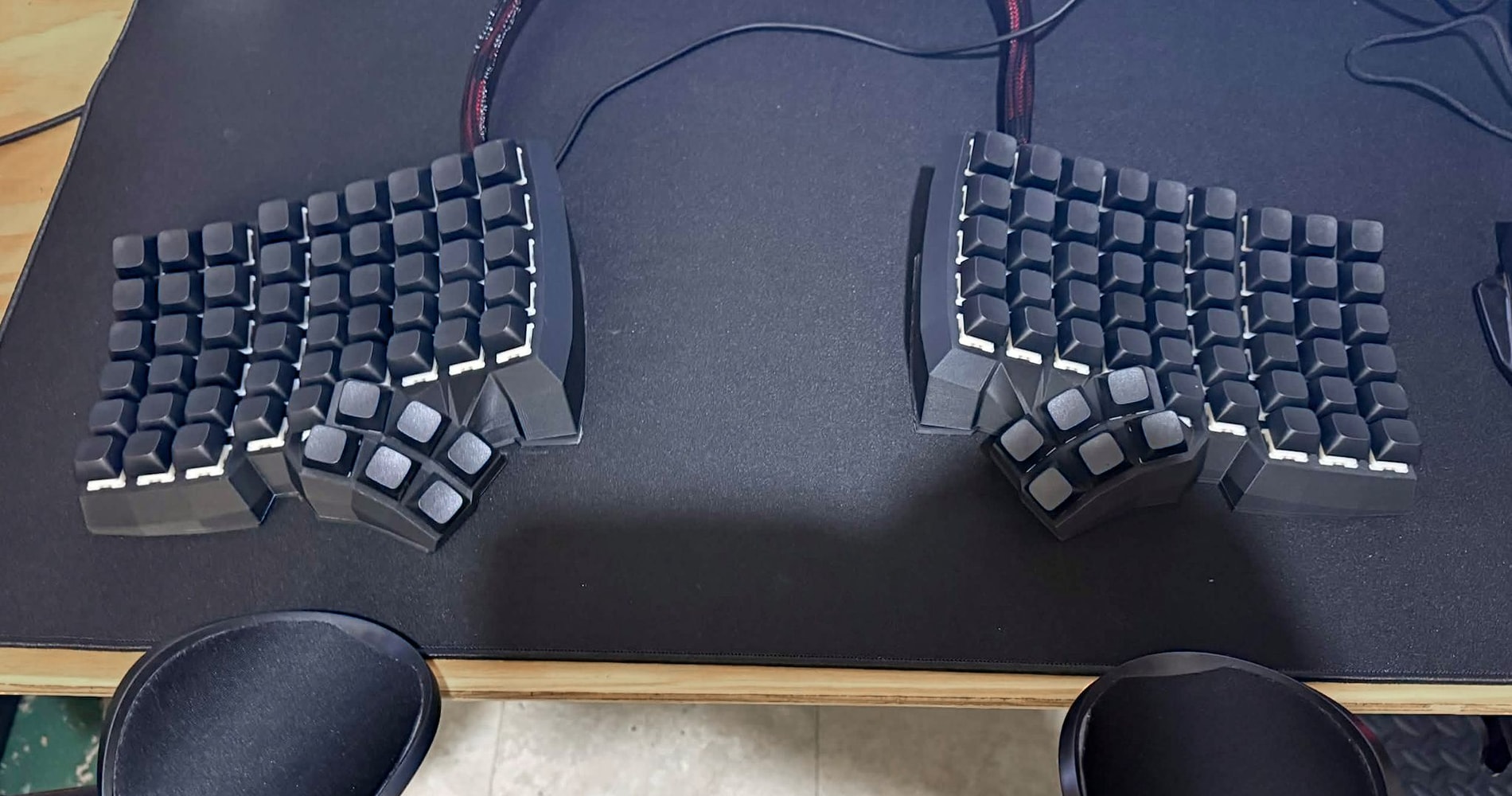

I wanted to create a dactyl keyboard that not only replaced my current keyboard, but also my macropad. The result is the Dactyl Max 112. With enough keys and layers to never run out.

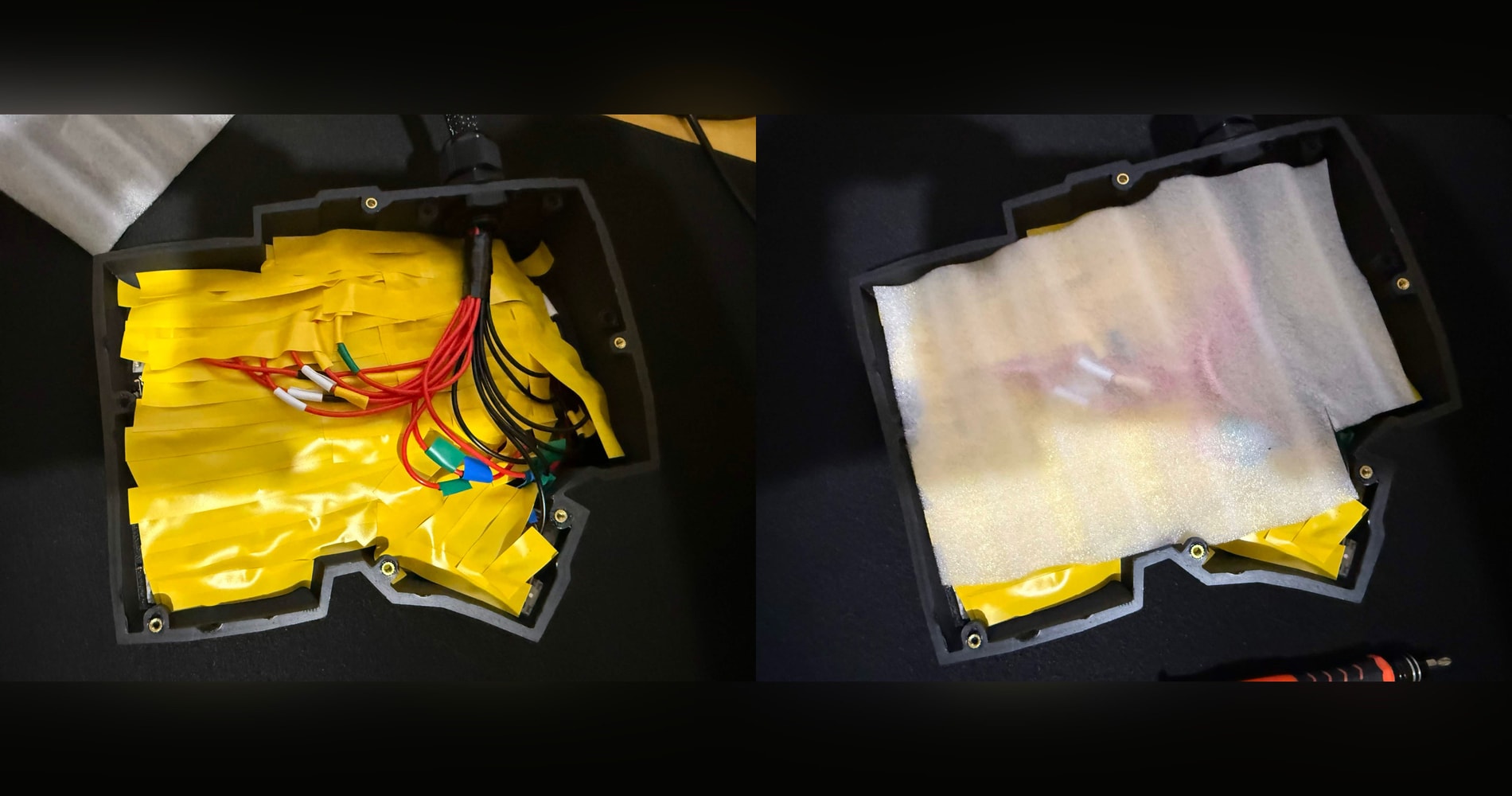

The foam and three plus layers of electrical tape under the keys does a great job of removing the hollow, clacky sound of the keyboard given its very large interior. This creates a far more thocky sounding keyboard. Although a little pop still remains.

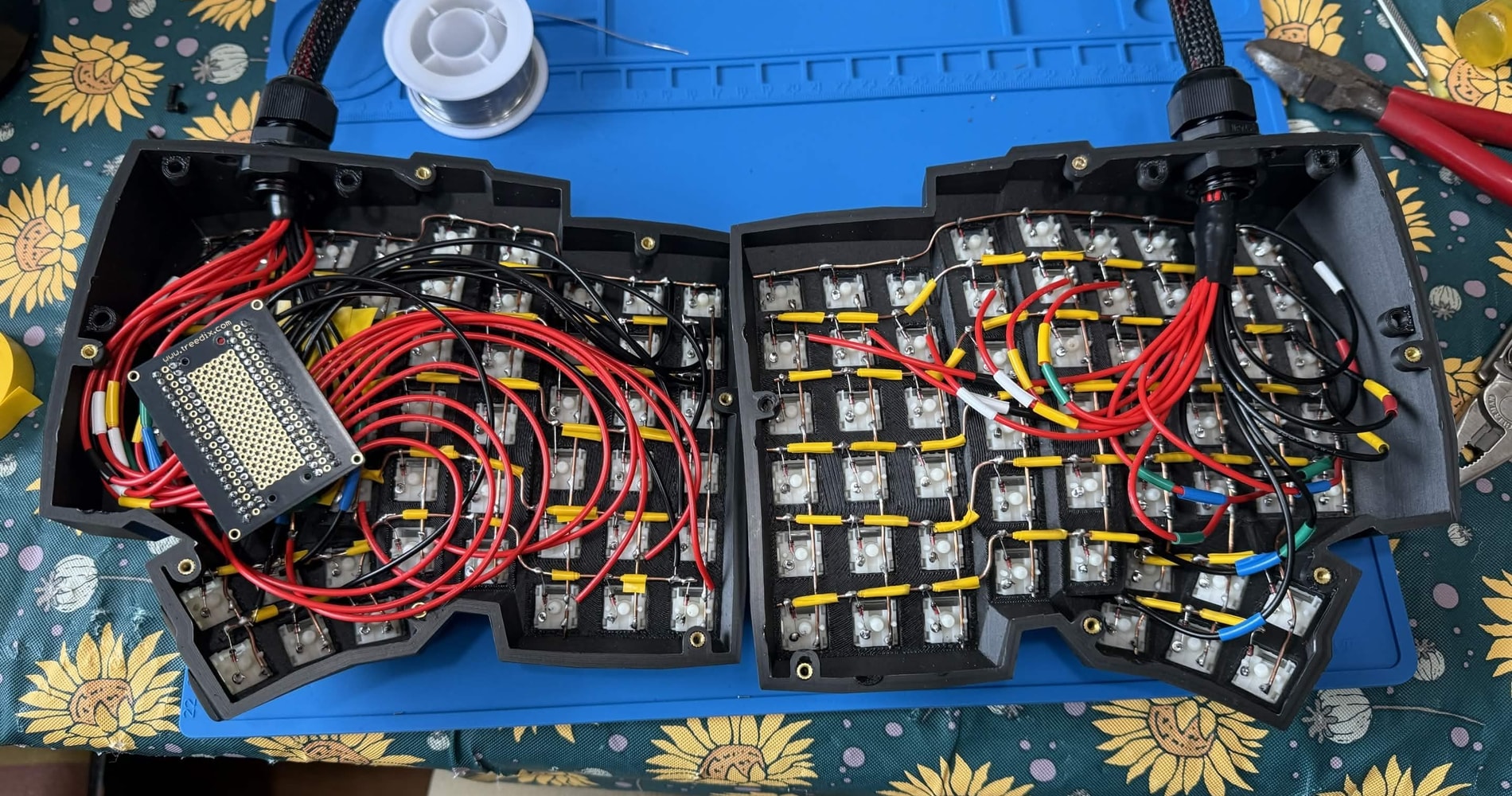

I had a pi pico 2 already so that is why I chose to use one. Since this is my first custom keyboard I kept it simple and didn't make a true split keyboard. Instead the wires go through that very large black cord connecting the two halves so the controller thinks it is a single keyboard. There is no reason to do this unless you already have the parts. On my next keyboard I will use the lemon board with usbc instead of trrs most likely and get rid of the massive cord.

I originally used POG to code my keyboard. It uses the python kmk firmware and circuit python instead of qmk. I did this because the pi pico 2 is not supported by qmk yet. I will likely either switch out my board or wait until it is supported. That is why I used a breakout board for this keyboard. I didn't want to solder the wires if I was just going to replace it. That being said kmk is very easy to use and POG makes custom keyboards even easier. I highly recommend it to anyone that is nervous to use qmk or can't use it.

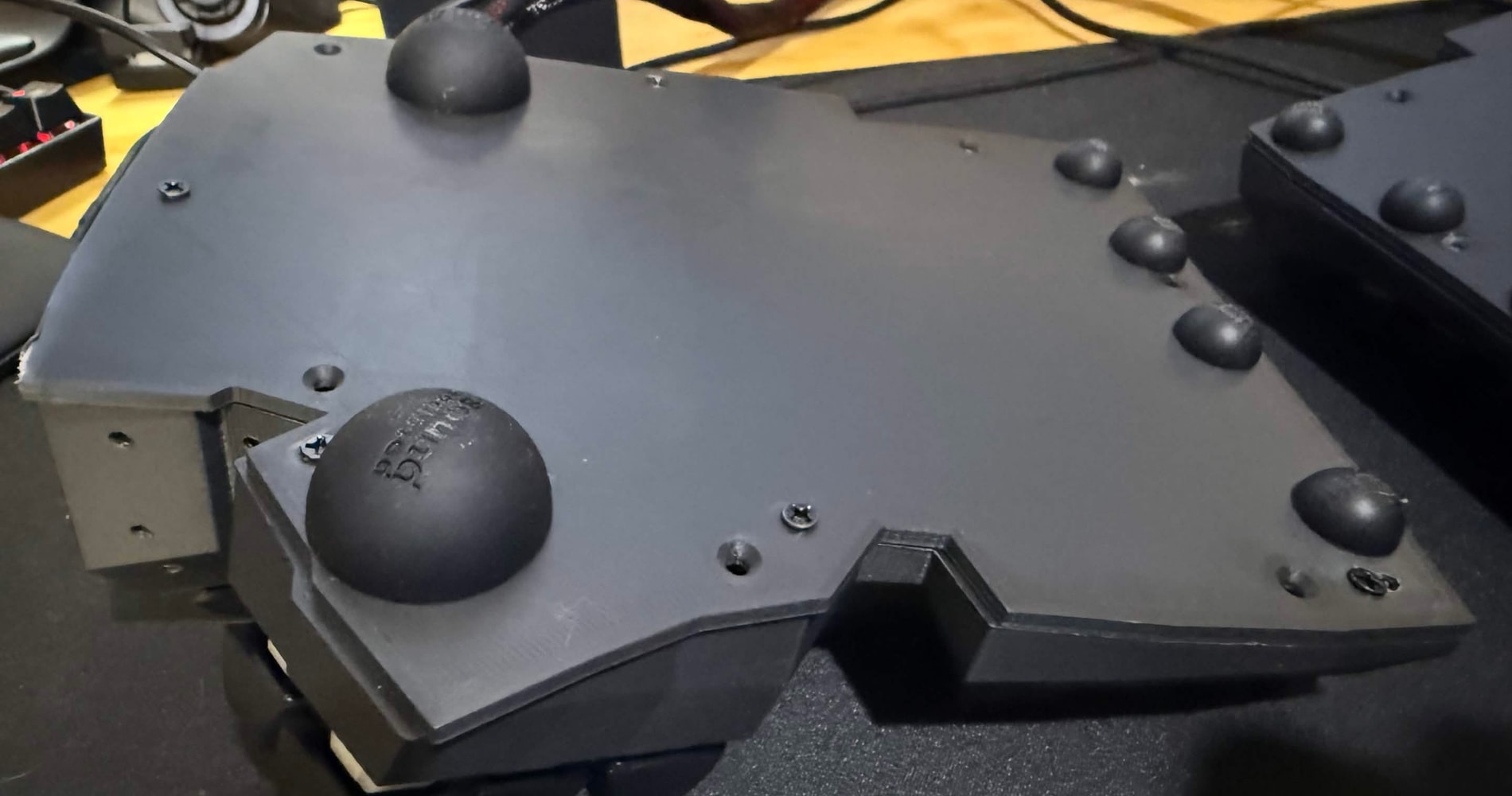

I also recommend the silicone feet I put on for additional tenting, adding some weight, and prevent sliding.
